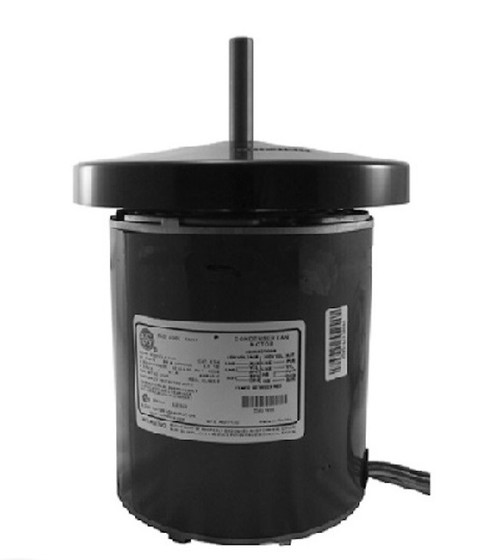

8055 Nidec | 1 hp 1080 RPM 1-Speed 460V; 5.6″ Condensor Fan Motor

• 1 hp 1080 RPM 1-Speed 460V 2.5 amps
• Shaft 7″ x 5/8″ with water shield
• Rotation CW shaft end
• 5.6″ Diameter
• Motor case length 6.56″
• 77″ Leads
• Ball Bearings
• Includes 15 MFD 2-prong capacitor
• 1 Year mfg warranty

Permanent Split Capacitor Motor. Shaft up mount with shield. . Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature. Application Lennox condenser fan motors.  Suggested after market replacement for 88C7301, K55HXBSF9500
