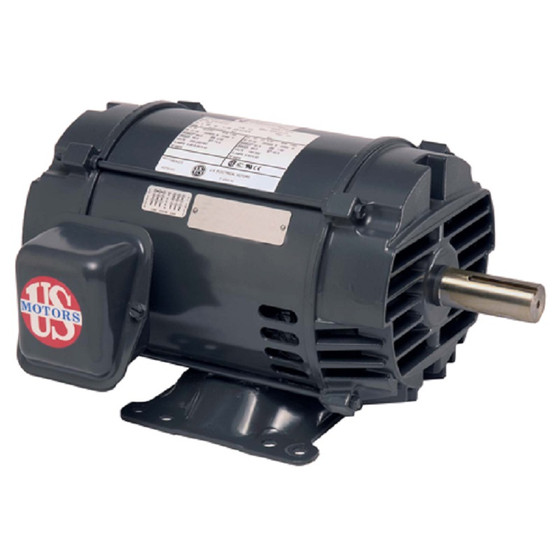

D7PA2A Nidec | 7.5 hp 1800 RPM 213T Frame 208-230/460V ODP Electric Motor

• 7.5 hp 1800 RPM, 18.5/9.3 amps 208-230/460V  Three Phase
• NEMA 213T frame Keyed Shaft 1-3/8″ x 3 3/8″
• ODP; Service Factor: 1.15, Overload protection = Auto
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 16.0″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Application: Lennox Commercial Blower; Model DS27; Suggested after market replacement for 31L4501, D7EA2A
