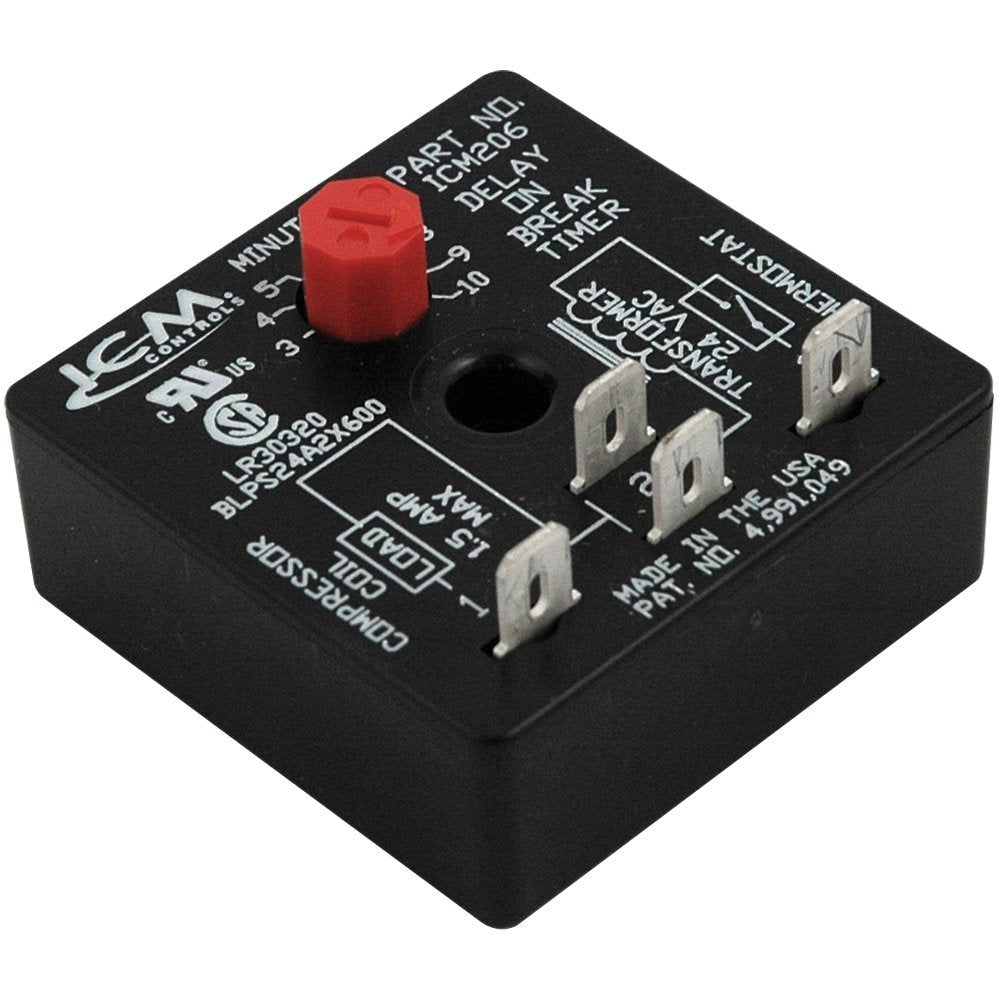

ICM Controls ICM206 Delay on Break Timer with 3-10 Minute Time Delay, 18-30 VAC

ICM Controls ICM206 Delay on Break Timer with 3-10 Minute Time Delay, 18-30 VAC

• Compressor lockout/anti-short cycle timer
• Brownout protection
• UL 873 recognition as compressor controller
• Helps prevent scroll compressor reversal
• Fast response time: 16ms
• Prevents low voltage starts
• Eliminates relay chatter due to thermostat bounce or tampering
• Works with anticipator-type thermostats
• 18-30 VAC

Mode of Operation

With application of power, the load is energized. When the thermostat opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. ICM Models 204/205/206 provide true thermostat interruption protection, even in the presence of a trickle current.

SPECIFICATIONS
