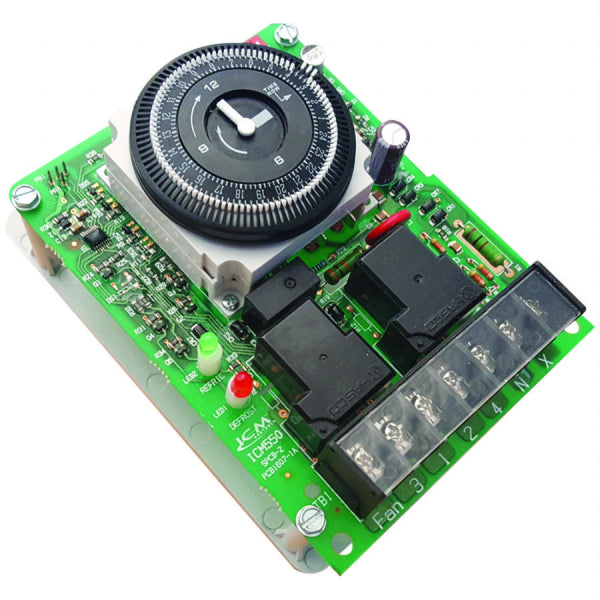

ICM Controls ICM550 Multi-Functional Defrost Timer
- Adjustable 15 min to 23 hours and 45 min timing cycle
- Timed or manual termination
- User-friendly time clock
- High power output relays
- 100% monitoring of inputs and outputs
- Available with mounting bracket (Order: ICM550) or packaged in a NEMA Type 4X weatherproof enclosure (Order: ICM550-ENC)
- ICM550: 4.50” x 3.12” x 6.00”
- ICM550-ENC (w/enclosure): 8.75” x 6.50” x 2.75”
Multi-Functional Timer
When mode B is selected and the unit is in the timed cycle (clock dip switches in the on position), the load will be turned on with the back up source. At the end of the timed cycle, the unit will return to normal operation until the next preset interval occurs.
If Mode A is selected, the load be off during the timed cycle and the back up source will be on. At the end of the timed cycle, the unit will return to normal operation until the next preset interval occurs.
SPECIFICATIONS:
ELECTRICAL RATING:
Voltage: 120-240VAC
Frequency: 60 Hz
OUTPUT:
Type: Relay
Form: SPDT, SPST
Rating:
- [2] & [4]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC
- [1] & [3]: 40A R, 1HP @ 120 VAC, 2HP @ 240 VAC
- [1] & [F]: 30A R, 1HP @ 120 VAC, 2HP @ 240 VAC
TIMING:
Minimum cycle time: 15 min
Maximum cycle time: 23 hr 45 min
Terminate cycle: Cycle can be terminated by shorting “X to N”
STATUS LED:
Cycle mode: (Red LED)
Normal mode: (Green LED
Replaces:
Intermatic / Grasslin: 010-0011B, DT040, DT140, DTAV40, DTAV40M, DT-B, DTMV, DTSX
Paragon: 8041, 8045, 8047, 8141, 8143, 8145, 8245, 8247
Precision: 6041, 6045, 6047, 6141, 06145
